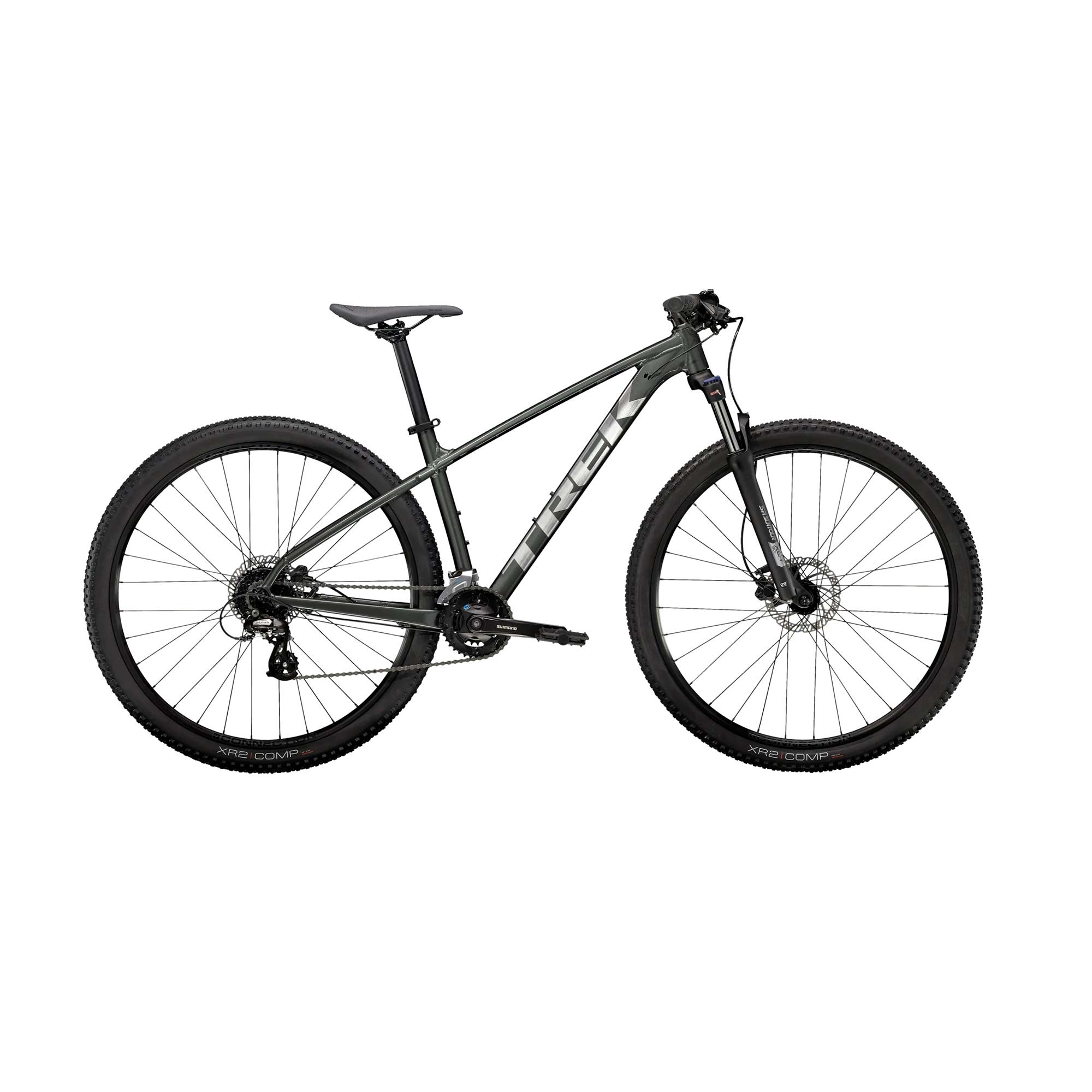

Trek Marlin 5 is a versatile and reliable companion for your off-road adventures.
Checkout & Specifications
Frameset
*Frame
Size: XXS , XS , S Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR Size: M , ML , L , XL , XXL Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
*Fork
Size: XXS SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 42mm offset for 26'' wheel, 100mm QR, 100mm travel Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel Max compatible fork travel 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)
Wheels
Hub front
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Skewer rear
152x5mm QR
*Rim
Size: XS , S Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black Size: M , ML , L , XL , XXL Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
*Tire
Size: XXS Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20'' Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20'' Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
Max tire size
Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer
Drivetrain
*Shifter
Size: XXS , XS , S , M , ML , L , XL , XXL Shimano M315, 2 speed Size: XXS , XS , S , M , ML , L , XL , XXL Shimano M315, 8 speed
Front derailleur
Shimano Altus M315, 34.9mm clamp, top swing, dual pull
Rear derailleur
Shimano Altus M310
*Crank
Size: XXS Prowheel TM-CY10, 36/22, 160mm length Size: XS , S , M Shimano M315, 36/22, 170mm length Size: ML , L , XL , XXL Shimano M315, 36/22, 175mm length
