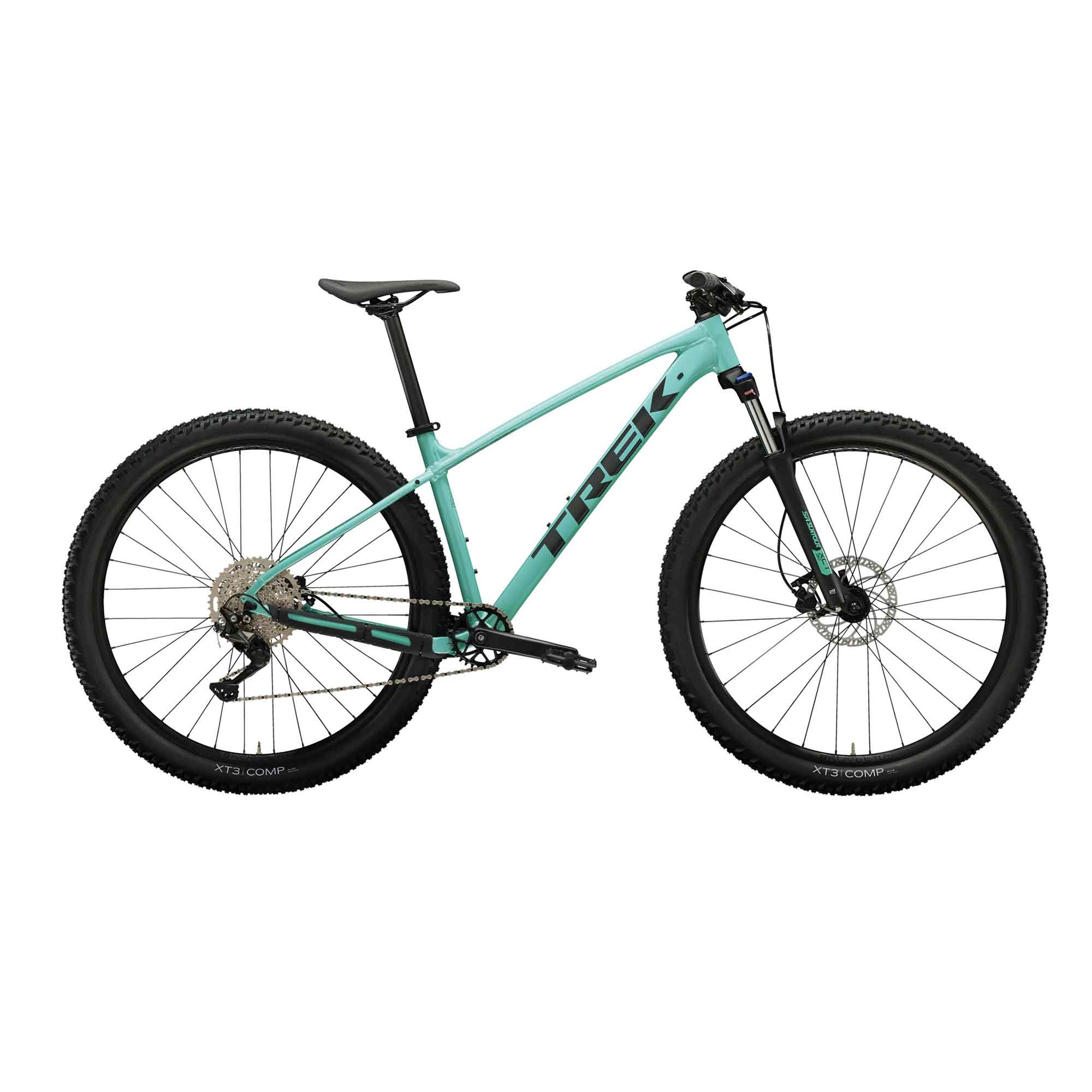

Designed for versatile trail riding, the Marlin 6 offers exceptional performance and durability.
Checkout & Specifications
Frameset
Frameset
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork
Size: XS, S, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5"" wheel, 100 mm QR, 100 mm travel; Size: XS, S, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5'' wheel, 100 mm QR, 100 mm travel; Size: M, ML, L, XL, XXL, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel; Size: M, ML, L, XL, XXL, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29'' wheel, 100 mm QR, 100 mm travel
Wheels
Hubs
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length
Bottom Bracket
VP BC73, 73 mm, threaded cartridge
Rear Derailleur
Shimano Deore M5120, long cage
Shifters
Shimano Deore M4100, 10 speed
Components
Brake set
Tektro HD-M275 hydraulic disc, 180 mm rotor
Handlebar
Size: XS, Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width; Size: S, Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width; Size: M, ML, L, XL, XXL, Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size: XS, S, M, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length; Size: ML, L, XL, XXL, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Stem
Size: XS, S, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 35 mm length; Size: M, ML, L, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length; Size: XL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length; Size: XXL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
